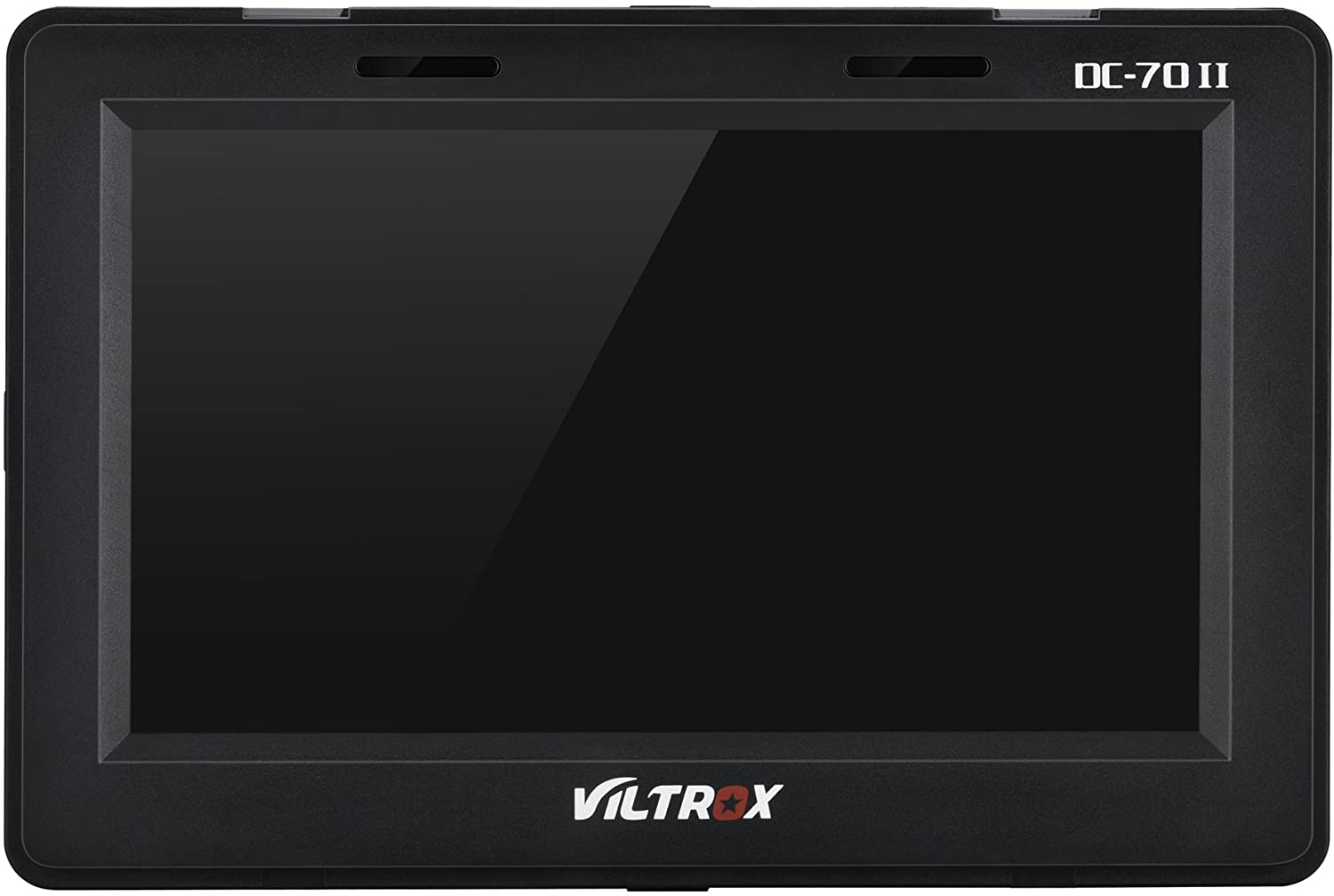

Viltrox DC-70II Clip-on LCD Monitor adopts with 7 inch TFT high resolution LCD panel, is loaded with pro-style features to help photo enthusiasts and video-graphers shoot high-quality HD video footage with their Interchangeable Lens Digital camera.
There is also pixel magnification and peaking facility which will ensure accurate focus confirming, give an enlarged pixel-perfect view of a selected portion of the Full HD image.

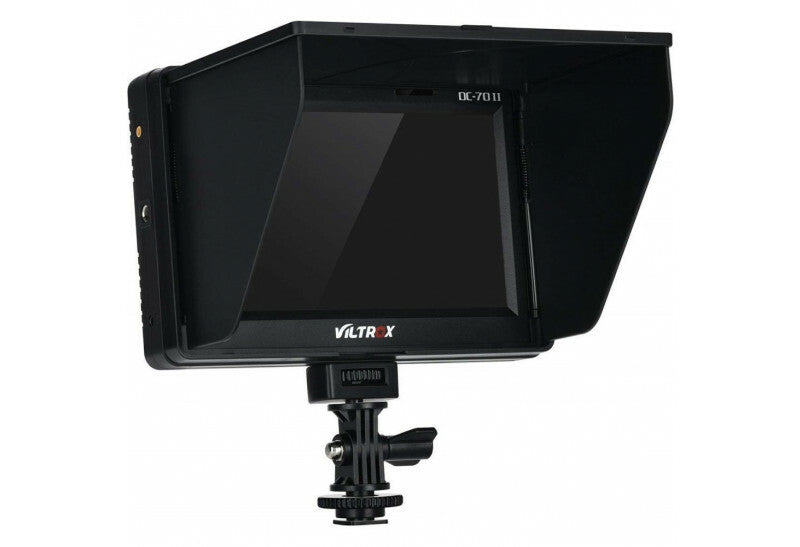

Viltrox DC-70II Clip-on LCD Monitor has angle adjustment shoe adaptors, they fulfill the different angles need in the real shooting process.
Viltrox DC-70II Clip-on LCD Monitor has lots of useful functions such as peaking, peaking color, pixel-by-pixel, freeze, zoom,exposure and scan mode,etc.zoom,exposure and scan mode,etc.
1024*600 pixel , come with battery and charger .
Product description
Style:VILTROX DC-70 II
Some Nikon cameras can't show images when connect the monitor , please don't worry ,just please disconnect the monitor , and set your camera .
Menu-Setup menu-HDMI-Device control-off
Product Function: DC-70 is a portable LCD monitor for use with an Interchangeable Lens Digital Camera or an Interchangeable Lens Digital HD Video Camera Recorder with an HDMI terminal and live view mode. It can display HDMI video output from the camera. The following functions help you to see the image more clearly and take better pictures. Wide viewing angle LCD screen Useful functions such as peaking and pixel-by-pixel zoom Controls camera shutter release, ensures the long-distance monitor. Moveable shoe adaptor enables easy removal when using a camera that has an auto lock accessory shoe. Works with rechargeable battery or power adapter.

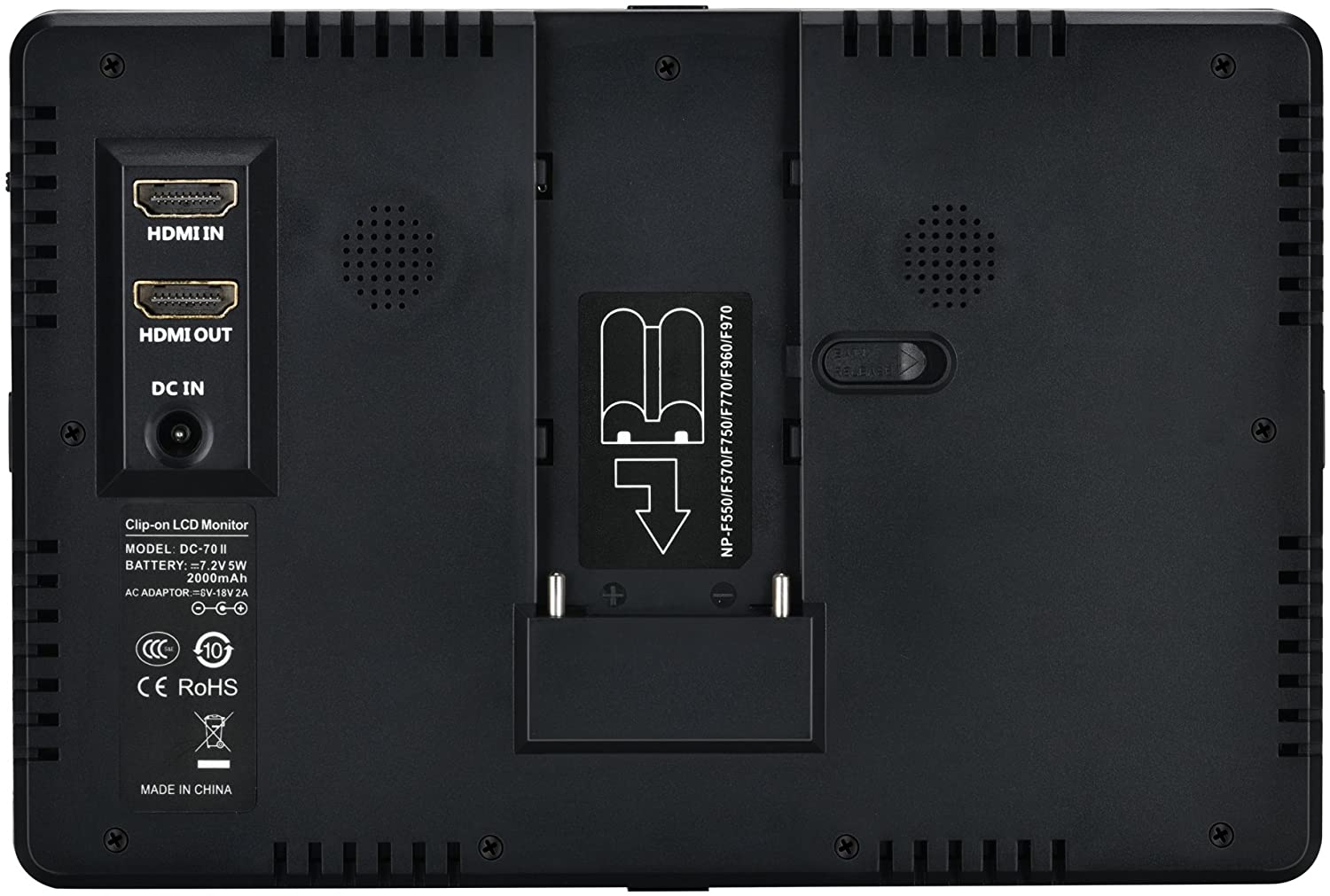

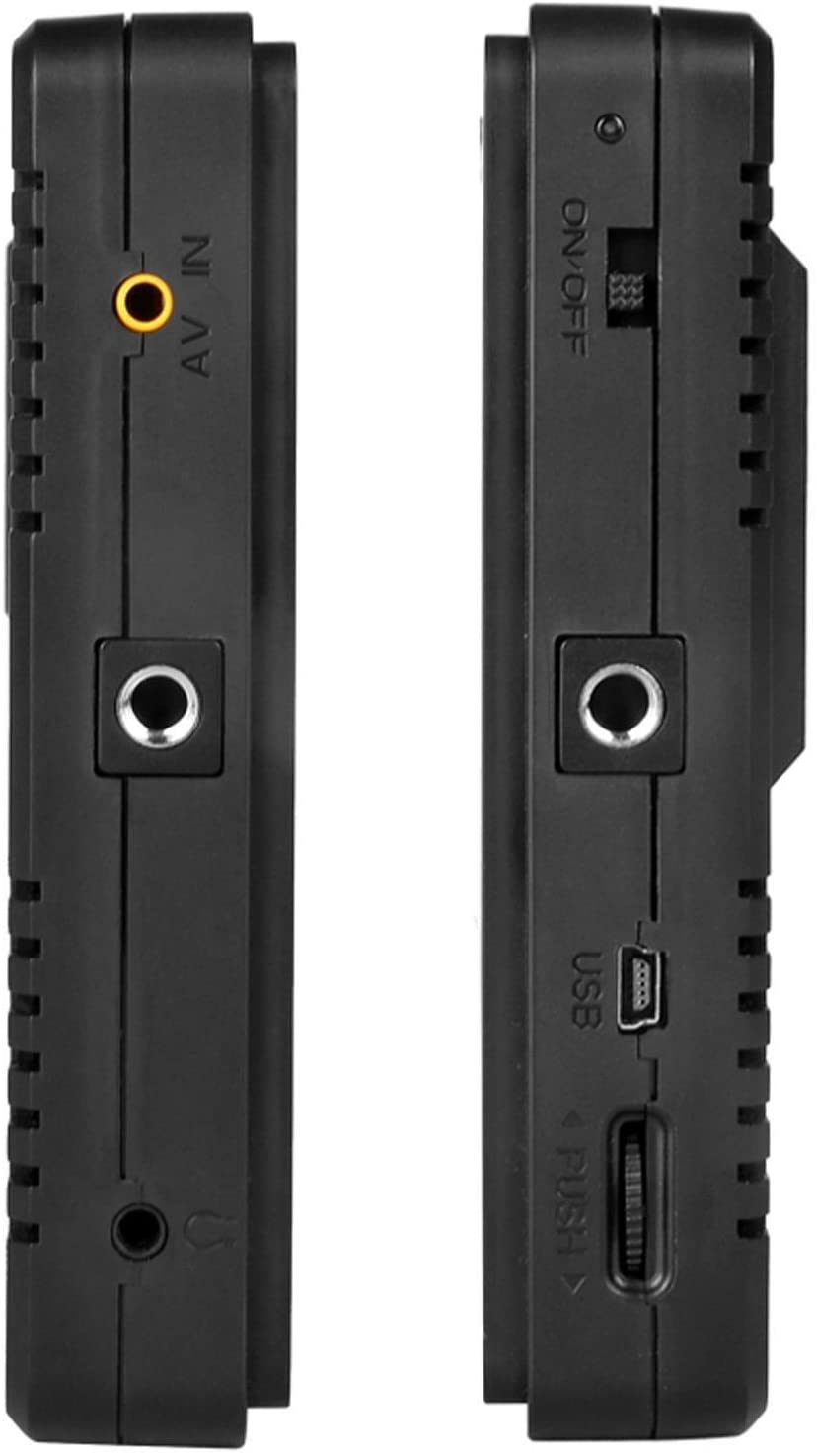

Specifications： General Dimensions(W×H×D): Approx. 191×128×36 mm Weight: Approx. 480g (Excluding battery) Color: Black Operating temperature: +0 to +40°C (+32 to +104°F) Storage temperature: -20 to +60°C (-4 to +140°F) Power Supply: DC 8V~18V Battery: FM500H / QM71D / QM91D Panel LCD panel size: Approx 7’’ Resolution: 1280×800 pixels Speaker: Yes Input jack: Input jack 1 HDMI ×1 / Input jack 2 AV ×1 Input jack 3 DC IN (power adapter plug) Input jack 4 USB upgrade jack Output jack:Headphones output jack / Output jack 1 HDMI ×1
