Item information:
Condition: Brand new in original packaging

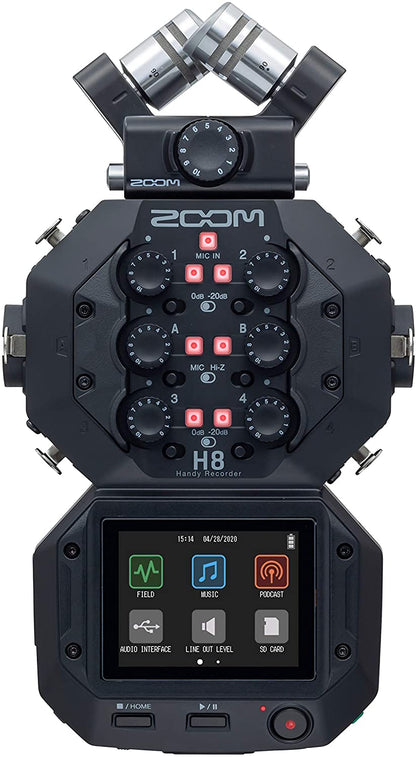

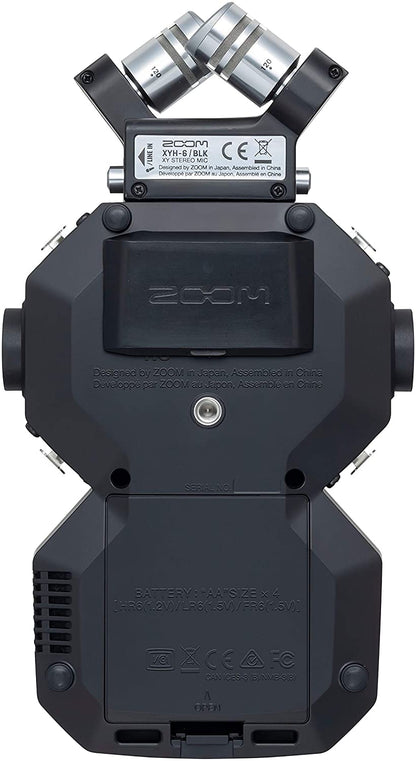

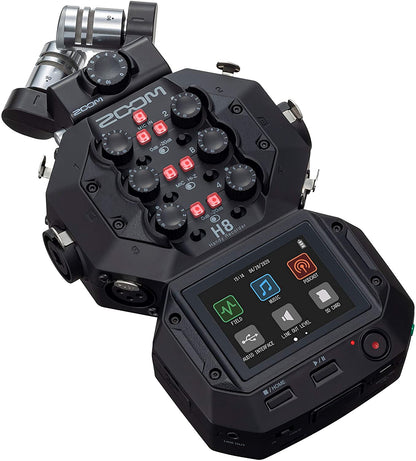

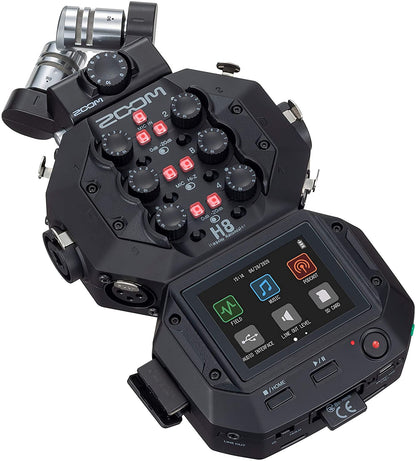

Model name: Zoom H8 Portable Audio Recorder
Description:
-
THE ONLY RECORDER THAT ADAPTS TO YOUR WAY OF CREATING
12 simultaneous recording tracks, interchangeable capsules, and an App-driven touchscreen interface, the H8 is designed to meet all your audio recording needs.
H8 FEATURES
- Customized applications for field recording, music and podcasting
- 3 distinct interfaces for field recording, music and podcasting
- Interchangeable input capsules
- 12-track simultaneous recording
- Four mic inputs and two XLR/TRS combo connectors
- Gain control knobs and -20dB pads for each input
- Supplied XYH-6 X/Y capsule provides secondary input via a stereo ⅛” Mic/Line In mini phone jack
- Phantom power for four main XLR inputs: +12/+24/+48V
- Large color LCD touchscreen display
- Records directly to SD, SDHC and SDXC cards up to 512GB
- Up to 24-bit /96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you’ll never miss that perfect take
- Built-in effects, including low-cut filtering, compression, and limiting
- Multichannel and stereo USB audio interface for PC/Mac/iPad
Specifications
NUMBER OF INPUT CHANNELS 8 (XY mic capsule, 1-4, A, B) NUMBER OF OUTPUT CHANNELS 2 (stereo headphone and stereo line) Connectors
MIC IN ZOOM mic connector INPUT 1-4 XLR jacks (2: HOT) INPUT A/B XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) USB USB Micro-B(audio interface, mass storage and Guitar Lab connection functions)Note: Use a USB cable that supports data transfer.Operation using USB bus power is possible. REMOTE ZOOM BTA-1 or other dedicated wireless adapter LINE OUT 3.5 mm stereo mini PHONE OUT 3.5 mm stereo mini PHANTOM POWER +24 V/+48 V (independent ON/OFF for INPUTS 1–4, A and B) Recorder
RECORDING MEDIA Cards that support SD/SDHC/SDXC specifications FORMATS WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereoMP3: 128, 192, 320 kbps MAXIMUM SIMULTANEOUS RECORDINGTRACKS 12 (MIC IN, backup recording, 1-4, A, B, and LR) Audio interface
MULTITRACK MODE 44.1/48/96 kHz, 16/24-bit, 12-in/2-out STEREO MIX MODE 44.1/48 kHz, 24-bit, 2-in/2-out TUNER Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD BUILT-IN SPEAKER 400 mW 8Ω mono speaker DISPLAY 2.4″ (320×240) full-color touchscreen LCD POWER 4 AA batteries (alkaline, NiMH or lithium)AC adapter (ZOOM AD-17): DC 5 V/1AUSB bus power Using XY mic, 44.1 kHz/24-bit (stereo × 1): about 15:00 The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. EXTERNAL DIMENSIONS H8 116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H) XYH-6 78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H) WEIGHT H8 354 g XYH-6: 130 g Note: When using a USB cable designed for recharging, audio interface, SD card reader and Guitar Lab connection functions cannot be used. - Customized applications for field recording, music and podcasting
