Model Name: HXR-Nx100

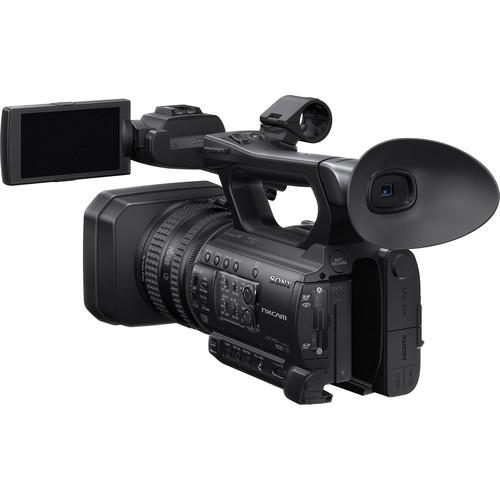

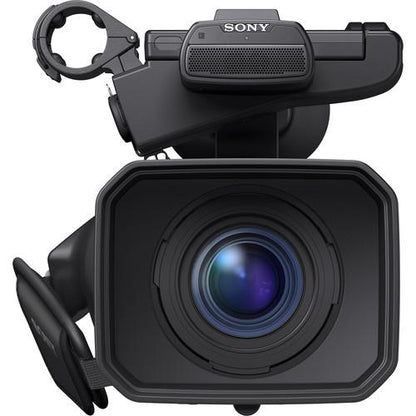

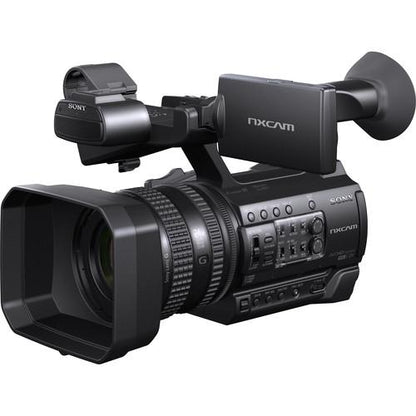

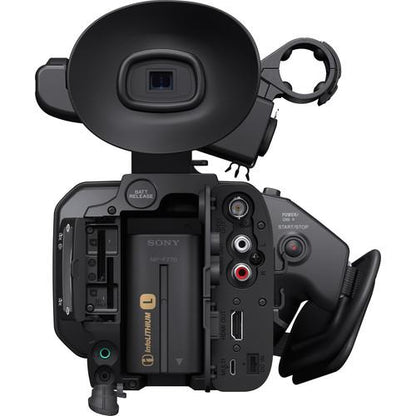

Sony HXR-NX100 Full HD NXCAM Camcorder
- Single 1″ Exmor R CMOS Sensor
- Up to 1920 x 1080p60
- Sony G Lens with 12x Optical Zoom
- 24x Clear Image Zoom, 48x Digital Zoom
The Sony HXR-NX100 Full HD NXCAM Camcorder brings high-quality performance, adaptability, and ease of use to a compact, handheld body.
The HXR-NX100 Full HD NXCAM Camcorder features a single Exmor R sensor with Full HD 1920 x 1080 resolution, Sony G lens with 12x optical zoom range, and a 24x Clear Image Zoom. The integrated zoom lens features individual lens control rings for focus, iris, and zoom. The lens can be used in either full-auto mode with servo control, or as a completely manually operated lens.
The HXR-NX100 camera supports storing up to six picture profiles and allows you share profiles between multiple NX100 camcorders. The camera also supports Sony’s slow- and quick-motion for shooting HD video at variable frame rates. Recording to a variety of formats, frame rates, and codecs, the camcorder supports the XAVC S codec recording Full HD video at up to 59.94p, AVCHD 2.0 up to 59.94p, and DV for SD video. Your footage is recorded to media via two SD memory card slots. You can choose to record simultaneously to both cards or use the relay mode which switches recording automatically to the second memory card when the first one is full. The two card slots can be controlled independently from two separate record buttons. Two 3-pin XLR audio inputs support line, mic, and mic + 48V (phantom power) for using professional microphones. The camera also includes IR capability for shooting in extremely dim lighting conditions, as well as date/time stamp functionality.
1″ Exmor R CMOS Sensor
The HXR-NX100 incorporates a 1″-type Exmor R CMOS sensor with 14.2 million effective pixels, which is approximately the same size as Super 16mm film frame. The R designation signifies that this is a backside illuminated sensor, which places the circuitry behind the photosites, allowing more light to reach the sensors and resulting in greater low-light sensitivity.
Depth of Field
The 1″-type sensor offers more shallow depth of field than the 1/2.88″-type or smaller sensors.
Sony G Lens with 12x Optical Zoom, 24x Clear Image Zoom
The HXR-NX100 is supplied with a fixed 12x 29mm wide-angle Sony G lens. The 12x optical zoom can be doubled to 24x with Clear Image Zoom, and the Digital Extender function can double this range again by up to 48x zoom.
Frame Rate Flexibility
The HXR-NX100 records using the AVCHD 2.0 codec for Full HD 1920 x 1080 resolution video at frame rates of 24p, 30p, 60i, and 60p. The camcorder also offers 720p60 AVCHD capture, 2x slow-motion and 60x quick-motion recording, and standard-definition DV recording. The two SD card slots enable simultaneous or relay recording.
The three lens rings enable smooth, natural adjustment of focusing, zooming, and iris control. It can also be used in full-auto mode or completely manual for maximum creative control.
The HXR-NX100 is equipped with an ND Filter function, allowing you to choose four conventional mechanical ND filter positions (Clear, 1/4ND, 1/16ND and 1/64ND) for better exposure and depth of field control.
The HXR-NX100 is equipped with two memory card slots, one of which is for SDHC/SDXC cards only, while the other slot is compatible with SDHC/SDXC and Memory Stick PRO Duo (Mark 2)/Memory Stick PRO-HG Duo cards. Please note that, because of the data rate and file structure required for XAVC S recording, you must use a separately available Class 10-rated SDXC media card to record XAVC S.
Two media slots can be used to record in either “SIMUL” or “RELAY” mode. “SIMUL” mode permits simultaneous recording to two memory cards, while “RELAY” mode automatically switches recording from the first to the second memory card when the first is full.
You can set up the two Start/Stop buttons on the HXR-NX100, one on the grip and one on the camcorder body, to independently start and stop recording on different memory cards while recording in “SIMUL” mode.
Multi Interface Shoe
The MI Shoe expands your options to use accessories without cables, such as the optional HVL-LBPC Video Light or UWP-D wireless microphone series.
EVF and LCD Viewfinder
The HXR-NX100 incorporates a 0.24″-type 1550K-dot EVF and 3.5″-type 1550K-dot LCD.
The HXR-NX100 records AVCHD and DV, suitable for conventional workflow, and newly implemented XAVC S 50 Mb/s, which realizes better image quality.
You can fine-tune the look of movies before shooting by adjusting up to 99 parameters such as gamma, knee, black level, color model/level/phase and more. Adjusted parameters can be saved along with other settings as a profile, and up to six profiles can be stored for later recall.
You can copy the settings from one HXR-NX100 to another HXR-NX100, so the user can shoot with multiple cameras in the same settings. The picture profiles only work with the same model of camera.
Sharing a commitment to outstanding performance and design, Sony and Carl Zeiss co-develop lenses that combine the best possible optics with premium-quality electronics and sensor technology for Sony’s Handycam® models.
9.2MP still image capture
Sometimes you don’t need — or want — video. Put your video camera in still image mode and capture amazing high-quality 9.2-megapixel single images as easily as you do with a still image camera.
Clear movies, that contain twice the image data of movies recorded in interlace mode, can be recorded in Full HD at 60p/50p in progressive recording mode. The images are as smooth as those shot at 60/50 frames per second, and each frame is recorded as one full picture. So a still captured from a movie recorded in progressive mode looks extra-sharp.
Dual Video Recording2
Record two movies at the same time — one in the maximum-quality XAVC S or AVCHD format and another in MP4 format. That way you’ve got a small file ready for instant sharing, plus a professional-grade file for further editing.
In the Box
- Sony HXR-NX100 Full HD NXCAM Camcorder
- Lens Hood
- NP-F750 Battery
- Battery Charger
- Large Eyecup
- Shoe Cap
- USB Cable
- CR2025 Lithium Battery (Pre-Installed in IR Remote Commander)
- Sony AC-L100 AC Adapter
- AC Cable
- Limited 1-Year Warranty
