|Video Capture Resolution||4k|
|Max Focal Length||531|
|Item Weight||4.4 Pounds|
About this item
- No Internal Battery (Lighter)
- Micro Four Thirds Lens Mount
- 10" LCD (1920 x 1200 Resolution)
- Built-In Talkback and Tally
- 4-Pin XLR Power Connector
Featuring a massive 10 inch viewfinder, MFT lens mount, talkback, tally indicators, phantom powered microphone connections, 12G-SDI and user upgradeable optical fiber connections that let you connect to your switcher with a single cable!
The advanced 4K model is switchable to 1080 HD, that means you can work in HD today and you're always ready for Ultra HD production.
Perfect for outdoor and indoor live production
Now you can produce multiple camera live production in any location!
The super bright large viewfinder and compact size of the Blackmagic Studio Camera makes it perfect for talk shows, sitcoms and broadcast news in the studio, or even live concerts and sporting events.
The incredible lightweight compact design, foldable sunshade and interchangeable lenses mean you can pack an entire multi camera live production rig into a single road case!
Because it’s so easy to setup and use, the Blackmagic Studio Camera is also perfect for corporate AV departments, houses of worship, schools and more!
Advanced technology in a compact, rugged design
The Blackmagic Studio camera features a compact and durable magnesium alloy body that is packed with innovative technology, making it the most rugged, portable and advanced studio camera in the world.
You get a huge 10"" viewfinder with sunshade for optimal viewing and control, a flexible MFT mount that gives you more lens options than any other studio camera, multiple mounting points and professional broadcast connections.
Designed with the latest miniaturization technology and features, the Blackmagic Studio Camera is the world's most advanced camera that's specifically designed for multiple camera live production.
From the manufacturer
Blackmagic Studio Camera
The world’s smallest broadcast camera with the world’s largest viewfinder!
Introducing Blackmagic Studio Camera, the world’s most advanced broadcast camera for live production! Inside its incredibly tough, lightweight magnesium alloy body you get a massive 10” viewfinder, talkback, remote camera control, tally indicators, phantom powered microphone connections, and SDI or user installable optical fiber connections that let you connect to your switcher with a single cable! The Blackmagic Studio Camera is available in HD and Ultra HD models, and is packed with all the advanced features you need for multi camera production and broadcast!
HD and Ultra HD
Ultra HD is the broadcast standard of the future and 4K content is already being delivered to consumers today through web video channels like YouTube and Vimeo. New Ultra HD displays deliver a picture that has 4 times the resolution of 1080 HD, that’s a massive 3840 x 2160 pixels! From the newsroom to live sporting and theatrical events, there’s no faster way to capture the beauty and realism of Ultra HD 4K than to record a live switched program with Blackmagic Studio Cameras!

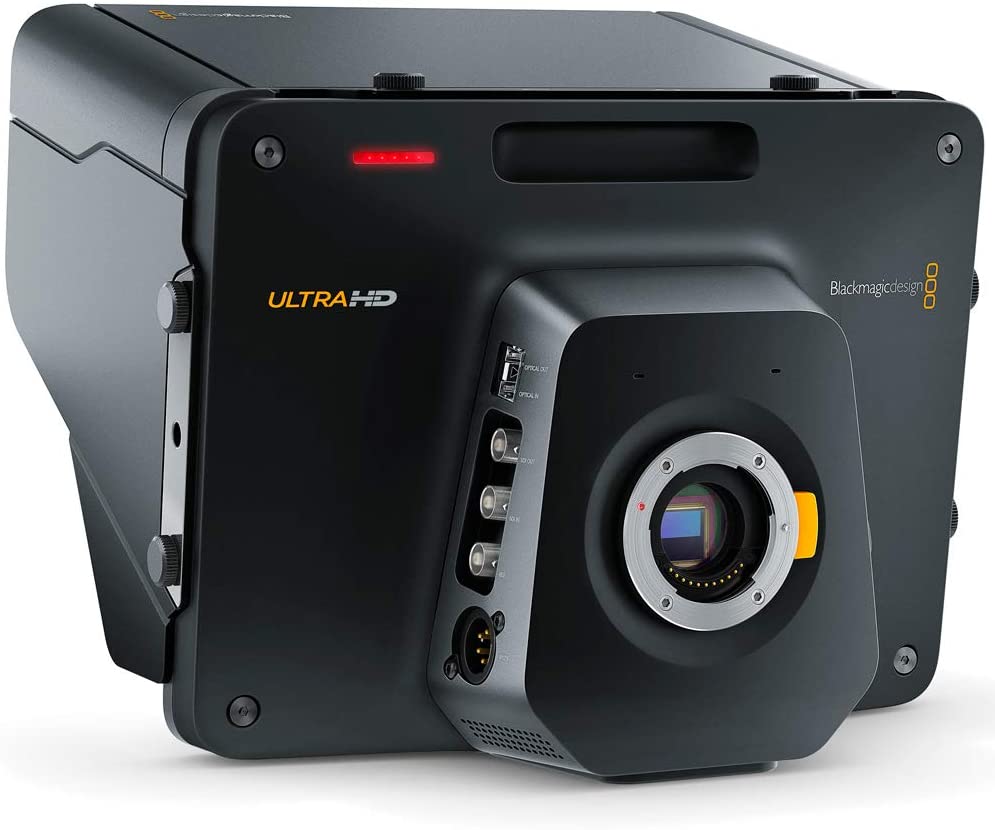

Micro Four Thirds Lens Mount
The Blackmagic Studio Camera features an active Micro Four Thirds lens mount that is compatible with an incredibly wide range of lenses and adapters. You can use your existing photo lenses for smaller setups or fixed camera use, or then bolt on incredible broadcast ENG lenses for large live broadcasts. Third party lens adapters let you connect to all kinds of lens mounts for any type of lens you choose, and you can even add feature film PL mount lenses, allowing you to customize your camera to suit any size production!

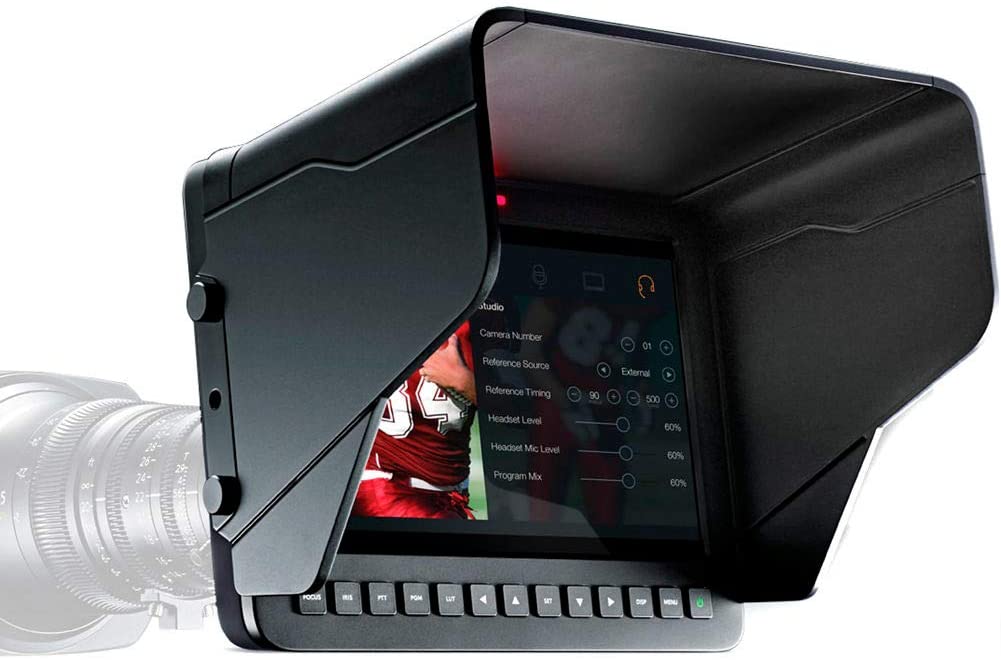

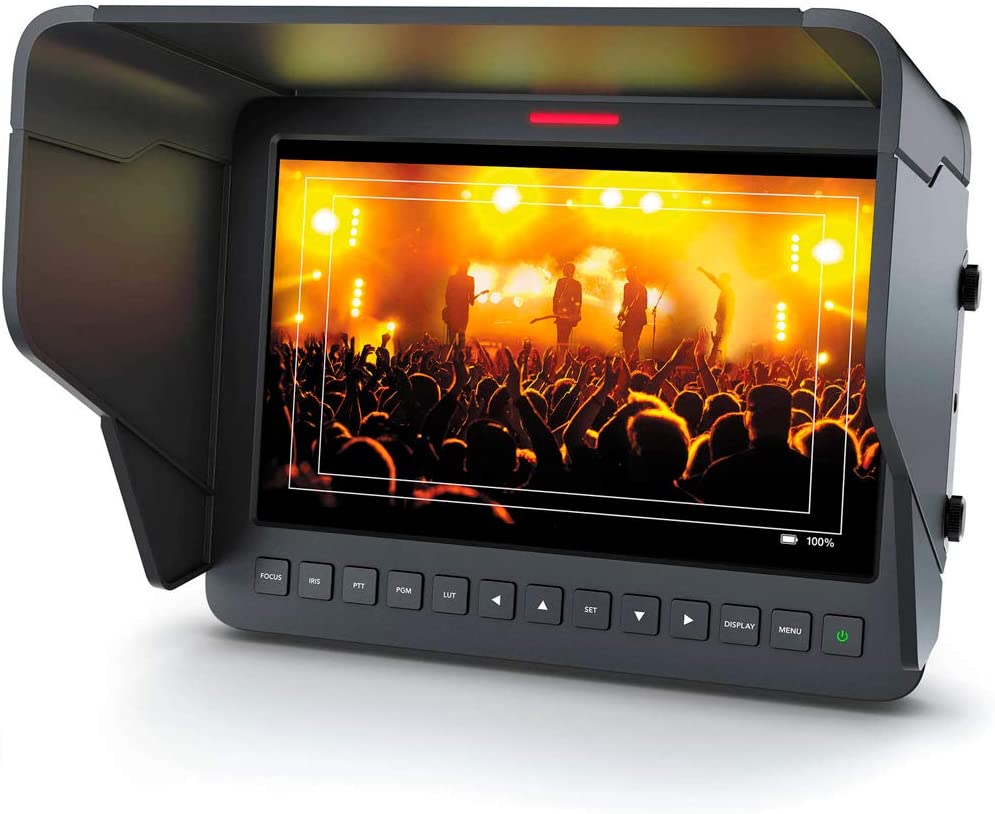

Large 10” Full HD Viewfinder
The Blackmagic Studio Camera includes the worlds largest viewfinder built in! The massive 10” high resolution screen has a super wide viewing angle and the large viewing area lets you see amazing detail so you can frame, focus, change iris settings, and make subtle adjustments, even when you’re live on air.
Bi-Directional Optical Fiber
The Blackmagic Studio Camera includes a user upgradable fiber optic connection, allowing you to use a single thin tether cable to connect cameras to your live production switchers. The optical fiber connection is bi-directional and carries HD or Ultra HD video with embedded audio, talkback, tally and even camera remote control. And because it uses standard, low cost fiber optic cable, you can connect cameras over massive distances almost anywhere, even at the largest outdoor venues.
|Blackmagic Design Studio Camera HD 2||Blackmagic Design Studio Camera 4K 2||Blackmagic Design Micro Studio Camera 4K|
|Features||The world’s most advanced broadcast camera for live production||A live broadcast camera that’s ready for multi camera Ultra HD production today||An incredibly tiny Ultra HD resolution camera that can be used in HD and Ultra HD video formats|
|Effective Sensor Size||12.48mm x 7.02mm||13.056mm x 7.344mm||13.056mm x 7.344mm|
|Focus||Auto focus. Peaking mode.||Auto focus. Peaking mode||Remote focus control via expansion connector or Blackmagic SDI Control Protocol when using compatible lenses|
|Lens Mount||Active MFT Mount||Active MFT Mount||Active MFT Mount|
|Lens Control||Iris, focus, zoom on supported lenses||Iris, focus, zoom on supported lenses||Iris, focus, zoom on supported lenses|
View Program Video - Monitor program video on the viewfinder
The Blackmagic Studio camera lets you view program video from your live production switcher at the press of a button! Simply press the camera’s PGM button and the viewfinder will display the program video feed from your switcher, turning the viewfinder into a large SDI monitor! You can even use the program SDI input to view playback from a local HyperDeck recorder when using the Blackmagic Studio Camera for recording.
